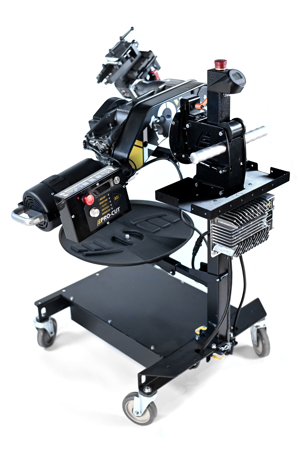

X-19 Battery Powered Lathe w/ 6 Adapters

Item Number: PCIX19-6ADP - Supplier: PRO-CUT INTERNATIONAL

Description

World's FIRST Cordless On-Car Lathe!

The X19 is a huge step forward in on-vehicle rotor matching. The computer system provides disc tracking, maintenance alerts, variable speed control, and includes a sophisticated battery management system. The X19 is the first and only rotor matching system in the world to be powered by a 48V 50Ah rechargeable battery. Expect smooth operation, tighter run-out tolerances, and superior surface finishes without ever tripping over a power cord! You need to see it to believe it. Techs will get a over 8 hours of operating time from a single charge and the lathe can be plugged in for immediate power from the wall if needed. No range anxiety!


Features

  • Variable speed 48V DC motor
  • Performance Plus Cutting Head
  • New PFM 2.0 Electronics
  • Rechargeable 48V 50Ah Battery
  • 3000 charge cycles
  • 6 LED on-board work light
  • 4 Wheel, 4 Axis, Adjustable Trolley

Warranty

Two Years


Product Specifications

  • Maximum Rotor Thickness: 2.0"
  • Minimum Rotor Thickness: 0.20"
  • Maximum Rotor Diameter: 17.1"
  • Maximum Friction Face: 3.85"
  • Battery Weight: 58.4 lbs
  • Spindle Speed: 55-130 RPM
  • Carriage Speed: 0.005"/ rev.
  • Motor: 1 HP continuous, 2 HP Peak
  • Shipping Weight: 265 lbs
  • Eletrical Supply : 90-264VAC 50/60Hz 1ph
  • Feed Distance: up to 7.48"
