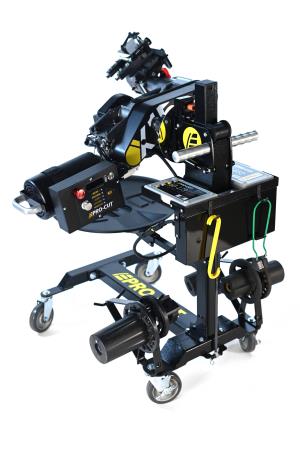

X15 On-Car Brake Lathe, 5 Adapter Package

Item Number: PCIX15-5ADP - Supplier: PRO-CUT INTERNATIONAL

Description

The X15's all-new computer system provides disc tracking, maintenance alerts, and variable speed control. It is  driven by a 48v DC motor -  Expect smooth operation, tighter run-out tolerances, and superior surface finishes.


Features & Benefits

  • Plug in, variable speed DC motor
    • Power to turn stiff axles and adjustable RPM to even turn locking axles
  • Performance Plus Cutting head
    • Cuts bigger rotors & provides our best shatter free surface finishes
  • New PFM 2.0 Electronics
    • Advanced stability & functionality with usage tracking and maintenance alerts
  • Patented one touch Lateral Run Out (LRO) compensation
    • Press one button and the latest PFM lathes compensate in seconds!
  • Cross Platform Compatible Computer & wiring harness
    • Allows use of G2X Measuring Cutting Head & full GYR Validated Brake Service
  • 6 LED On-Board Work Light
    • Improves technician safety and efficiency in dark wheel wells
  • 4 Wheel, 4 Axis, Adjustable Trolley
    • Working range of 21" to 43" allows the use on any lift or no lift with optional short shock

Includes

  • X15 Brake Lathe
  • PCI50ACC Accessory kit
  • PCI505ADP 5 Adaptor kit
  • BrakeSaver POS Marketing Kit

Warranty

Two Years Parts and Labor


  • Maximum Rotor Thickness: 2.0"
  • Minimum Rotor Thickness: 0.20"
  • Maximum Rotor Diameter: 17.6"
  • Maximum Friction Face: 3.82"
  • Maximum Depth of Cut: 0.015" / Side
  • Spindle Speed: 55-130 RPM
  • Carriage Speed: 0.005" / Rev.
  • Motor: 1000 W
  • Electrical Supply: Universal
  • Feed Distance: 7.09"
  • Dimensions: 35" x 29" x 32"
  • Shipping Weight: 315 lbs.

Product Specifications

  • Minimum Rotor Thickness: 0.20"
  • Maximum Rotor Thickness: 2.0"
  • Maximum Rotor Diameter: 17.6"
  • Maximum Friction Face: 3.82"
  • Maximum Depth of Cut: 0.015" / Side
  • Spindle Speed: 55-130 RPM
  • Carriage Speed: 0.005" / Rev.
  • Motor: 1000 W
  • Electrical Supply : Universal
  • Feed Distance: 7.09"
  • Dimensions: 35" x 29" x 32"
  • Shipped Weight: 315 lbs.
