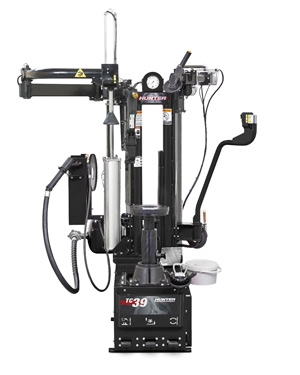

TC39 Center Clamp Tire Changer, Black

Item Number: HUNTC39BLK - Supplier: HUNTER ENGINEERING COMPANY

Description

The TC39 brings a powerful and easy to use leverless demount head to the same improved platform as the TC37. Features a bead press arm, two bead loosening rollers now with direct indention, and powerful variable-speed motors as standard equipment.

Features

Bead press arm assists mounting difficult assemblies.
Leverless mount head - positions beads without levers. Prevents damage to tire and rim.
Motor and drive - 0-14 rpm variable clockwise speed, 7 rpm counter-clockwise speed. 867 ft-lbs. of torque.
Blast inflation directs bursts of compressed air to easily seat the bead
Simple operation single pendant control - all controls at fingertips
Split bead roller system
- Match-mounting made easy
- Easy bottom bead demounting with roller
- Direct indention eases bead braking on all tires
Intuitive center-clamp system offers three height positions. Cam action multiplies clamping force.

Warranty

Call Hunter Customer Service at 1-800-448-6848 for specific warranty information.

Product Specifications

Bead Loosening Type: Rollers or Shovel (optional)
Match Mounting Capable: Yes
Adjustable Clamping Height: Yes
Rim Diameter Range: 10-26"
Maximum Tire Diameter: 46"
Maximum Wheel Width: 19"
Drive: Variable CW 15 rpm CCW
Power Requirements: 208-230V, 15A, 60Hz, 1 ph NEMA 20 amp plug, L6-20P
Air Supply Requirements: 115-145 psi (8-10 bar)
Shipping Weight: 730 lbs. (331 kg)
Width: 40" (1,1016 mm)
Height: 72" (1,829 mm)
Depth: 57" (1,448 mm)
Mount / Demount Tool: Polymer Self-inserting Leverless
Clamping Type: Center w/ Quick Clamp and Cam Plate
