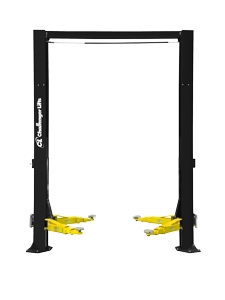

12K Heavy Duty Adjustable Wide Two Post Lift

Item Number: CLFCL12A - Supplier: CHALLENGER LIFTS INC

NOTE:  To lift electric vehicles (EVs) optional Electric Vehicle Footpad Kit, CLFTFPK, must be used.

Description

12K Heavy Duty Adjustable Wide Two Post Lift

Our 12,000 lbs. capacity CL12A 2-Post lift can accommodate a wide range of standard cars, trucks, vans, and SUV's within the same service bay with +6" & 12" width adjustment and optional +1' & +2' height extensions. Standard features also include 3-stage front and rear arms.


Features and Benefits

  • +6” & +1’ width adjustment and 6" height adjustment
  • When using to lift Electric Vehicles for battery removal, set in the widest width for best performance
  • Premium telescoping screw pads adjust to multiple heights minimizing the need for additional adapters
  • Adjustable column height accommodates higher profile vehicles and provides maximum headroom to work underneath vehicles
  • Premium powder coat finish provides long-lasting durability
  • Standard dual integrated rubber door guards help protect vehicle panels from inadvertent damage
  • ALI Certified
  • Available with optional 1’ (CLFCL12A-1) and 2’ (CLFCL12A-2) height extensions
  • Optional dual pendant and quick cycle features available to improve speed and spotting for technicians

Includes


Accessories

  • CLFTFPK Electric Vehicle Footpad Kit - designed to give a flat lifting surface

Warranty

Click Here for Warranty Information.


Product Specifications

  • Lifting Capacity: 12,000 lbs.
  • Lift Configuration: Symmetric
  • Arm Configuration: 3-Stage, front and rear
  • Rise Height: 84 3/4" with 6" adapters
  • Overall Height: 13' 8" or 13' 2"
  • Overall Width: 11' 10", 12' 4", 12' 10"
  • Drive Thru Clearance: 103 -1/2", 109-1/2", 115-1/2"
  • Floor to Overhead Switch: 13' 2" or 12' 8"
  • Arm Reach: Min: 27-1/2", Max: 59"
  • Screw Pad Height : Min: 5", Max: 12-3/8" (includes 6" stack adapter)
  • Inside Columns: 9' 6-1/2", 10' 1/2", 10' 6-1/2"
  • Standard Motor / Voltage: 2HP, 208V-230V, 60Hz, 1 Ph
  • Rise Time : 63 Seconds
  • Required Ceiling Height: 13' 9" or 13' 3"
